Two-component Room Temperature Cure RTV Silicones

Tow component silicone rubber (RTV-2) refers to a group of silicone rubber compounds that cure at room temperature, creating strong and resilient elastomers.

Two-component silicone rubber is usually made up of two parts a base compound and a curing agent. The base compound consists of polymer chains that have reactive functional groups like vinyl or hydride, which help in cross-linking. On the other hand, the curing agent triggers the crosslinking process when it is mixed with the base compound.

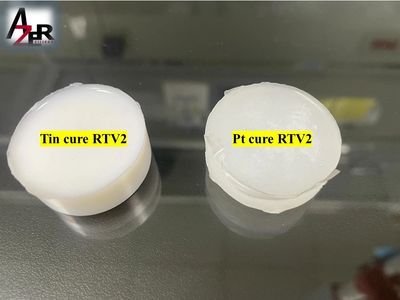

RTV-2 silicone can be cured through two processes: condensation or addition cure. In the condensation cure process, the curing agent reacts with ambient moisture to produce by-products like alcohol or acetic acid, creating crosslinking sites and resulting in a firm elastomeric structure. Conversely, addition cure systems require a catalyst to initiate the crosslinking reaction between functional groups in the base compound and curing agent, without producing any by-products..

RTV-2 silicone rubber is a remarkable material that possesses exceptional characteristics, such as flexibility, thermal stability, electrical insulation, weather resistance, and chemical inertness. It can withstand a wide range of temperatures, ranging from -50°C to 250°C or even higher depending on the grade, while still maintaining its properties for extended periods of time.

RTV-2 silicone rubber finds extensive use in various industries and applications, including:

• Mold Making:  RTV-2 silicone is commonly used for making flexible molds for casting various materials such as polyurethane, epoxy, plaster, and concrete.

• Prototyping: It is used in rapid prototyping and 3D printing as a mold-making material.

•  Potting and Encapsulation: RTV-2 silicone provides excellent protection for electronic components against moisture, vibration, and thermal cycling.

• Sealing and Gasketing: It is used for sealing and gasketing applications in automotive, aerospace and industrial equipment.

• Special Effects and Props: RTV-2 silicone is used in the entertainment industry for creating special effects, props, and prosthetics due to its lifelike flexibility and durability.

AZ101-42 is a high-strength silicone RTV adhesive designed for heat curing in silicone rubber applications that demand a clear and durable end product. This 2-part adhesive enables quick handling of parts once cured, making it a convenient choice. The use of a dispensing gun is necessary to apply the 2-part silicone dual syringes.

• Ratio 50:1 (2% Catalyst)
• Pourable

• Silicone rubber parts
• Bonding glass parts

 PROPERTIES

• Specific Gravity: 1.05
• Uncured Color: Transparant, with custom colors available
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 75,000 cps.
• Cured: 60 Minutes at 100°C
• Cured Color: Translucent + Custom Colors Upon Request
• Durometer, Shore: A 40
• Coefficient of Thermal Expansion: -4

AZ101-43 is two-component silicone rubber that is pourable, addition cure, heat-curing, that vulcanizes after heating. For its excellent durability with polyurethane resin, This product is particularly suited for mold-making material for reproducing intricate structures, the excellent resistance for casting, especially for polyester resins. It enables large numbers of castings to be taken from one mold. Other materials, such as plaster or wax, may also be cast without any problems from molds made of this product.

• Ratio 1:1
• Pourable

• Silicone rubber parts
• Bonding glass parts
• This product complies to the FDA CFR 177.26 regulations

 PROPERTIES

• Specific Gravity: 1.06
• Uncured Color: Transparant, with custom colors available
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 10,0000 cps.
• Cured: 60 Minutes at 120°C
• Cured Color: Translucent + Custom Colors Upon Request
• Durometer, Shore: A 50
• Coefficient of Thermal Expansion: -5

AZ101-44 is a room temperature curing, high durometer silicone RTV adhesive rubber developed for silicone rubber applications requiring a pourable, high durometer product. A dispensing gun is required for the dual syringes.

• Fast RT cure
• 10:1 mix ratio
• Pourable, self-degassing

• Silicone rubber parts
• Silicone gasket fabrication
• Industrial sealing and potting

 PROPERTIES

• Specific Gravity: 1.03
• Pot life: 2h
• Uncured Color: Transparant, with custom colors available
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 90,000 cps.
• Cured: 30 Minutes at 80°C
• Cured Color: Translucent + Custom Colors Upon Request
• Durometer, Shore: A 30
• Coefficient of Thermal Expansion: -5

 AZ101-45 is a room temperature curing, low durometer silicone RTV adhesive rubber developed for silicone rubber applications requiring a pourable, high durometer product. A dispensing gun is required for the dual syringes.

• Fast RT cure
• 11:1 mix ratio
• Pourable, self-degassing

• Silicone rubber parts
• Silicone gasket fabrication
• Industrial sealing and potting

 PROPERTIES

• Specific Gravity: 1.02
• Pot life: 40min
• Uncured Color: Transparant, with custom colors available
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 70,000 cps.
• Cured: 30 Minutes at 80°C/6~8h at RT
• Cured Color: Translucent + Custom Colors Upon Request
• Durometer, Shore: A 20
• Coefficient of Thermal Expansion: -4

 AZ101-46 is a room temperature curing, low durometer silicone RTV adhesive rubber developed for silicone rubber applications requiring a pourable, high durometer product. A dispensing gun is required for the dual syringes.

• Fast RT cure
• 15:1 mix ratio
• Pourable, self-degassing

• Silicone rubber parts
• Silicone gasket fabrication
• Industrial sealing and potting

 PROPERTIES

• Specific Gravity: 1.04
• Pot life: 40min
• Uncured Color: Transparant, with custom colors available
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 80,000 cps.
• Cured: 30 Minutes at 80°C/6~8h at RT
• Cured Color: Translucent + Custom Colors Upon Request
• Durometer, Shore: A 10
• Coefficient of Thermal Expansion: -5

 AZ101-01 is Pourable, condensation-curing, two-component silicone rubber that vulcanizes at room temperature. Due to its good flow characteristics and its low modulus, AZ101-01 is particularly suitable as a mould-making material for reproducing intricate structures, the good resistance to casting resins,especially polyester resins, enables large numbers of castings to be taken from one mold. Other materials, such as plaster or wax, may also be cast without any problems from molds made of AZ101-01.

• Fast RT cure
• 20:1 mix ratio
• Pourable, self-degassing

• Low shore A hardness (approx.20).
• Good flowability and self-deaeration.
• Great extensibility and elasticity.
• It is suitable for the economical production of large series of molded parts.
• Very good resistance to casting resins, particularly polyester

 PROPERTIES

• Specific Gravity: 1.04
• Pot life: 40min
• Uncured Color: Milky
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 24,500 cps.
• Cured: 10~8h at RT
• Cured Color: Milky
• Durometer, Shore: A 20
• Coefficient of Thermal Expansion: -5

 AZ101-02 is Pourable, condensation-curing, two-component silicone rubber that vulcanizes at room temperature. Due to its good flow characteristics and its low modulus, AZ101-02 is particularly suitable as a mould-making material for reproducing intricate structures, the good resistance to casting resins,especially polyester resins, enables large numbers of castings to be taken from one mold. Other materials, such as plaster or wax, may also be cast without any problems from molds made of AZ101-02.

• Fast RT cure
• 20:1 mix ratio
• Pourable, self-degassing

• Low shore A hardness (approx.30).
• Good flowability and self-deaeration.
• Great extensibility and elasticity.
• It is suitable for the economical production of large series of molded parts.
• Very good resistance to casting resins, particularly polyester

 PROPERTIES

• Specific Gravity: 1.03
• Pot life: 40min
• Uncured Color: Milky
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 76,750 cps.
• Cured: 10~8h at RT
• Cured Color: Milky
• Durometer, Shore: A 30
• Coefficient of Thermal Expansion: -5

 AZ101-03 is Pourable, condensation-curing, two-component silicone rubber that vulcanizes at room temperature. Due to its good flow characteristics and its low modulus, AZ101-03 is particularly suitable as a mould-making material for reproducing intricate structures, the good resistance to casting resins,especially polyester resins, enables large numbers of castings to be taken from one mold. Other materials, such as plaster or wax, may also be cast without any problems from molds made of AZ101-03.

• Fast RT cure
• 20:1 mix ratio
• Pourable, self-degassing

• Low shore A hardness (approx.10).
• Good flowability and self-deaeration.
• Great extensibility and elasticity.
• It is suitable for the economical production of large series of molded parts.
• Very good resistance to casting resins, particularly polyester

 PROPERTIES

• Specific Gravity: 1.02
• Pot life: 40min
• Uncured Color: Milky
• Solids: 100.00%
• Shelf Life: Sealed containers are guaranteed for 1 year from the ship date when stored in a cool dry area, below 70°F
• Viscosity: 44,500 cps.
• Cured: 10~8h at RT
• Cured Color: Milky
• Durometer, Shore: A 10
• Coefficient of Thermal Expansion: -4
